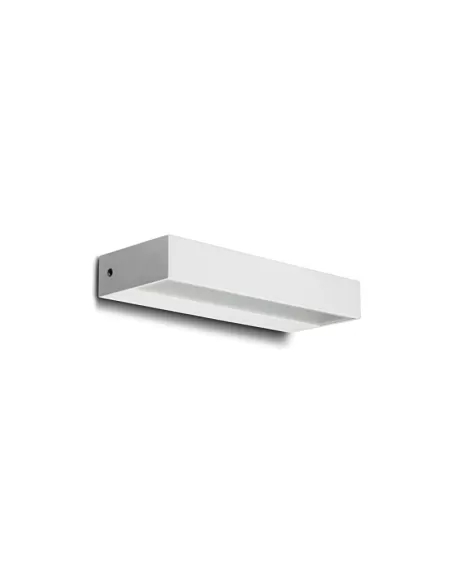

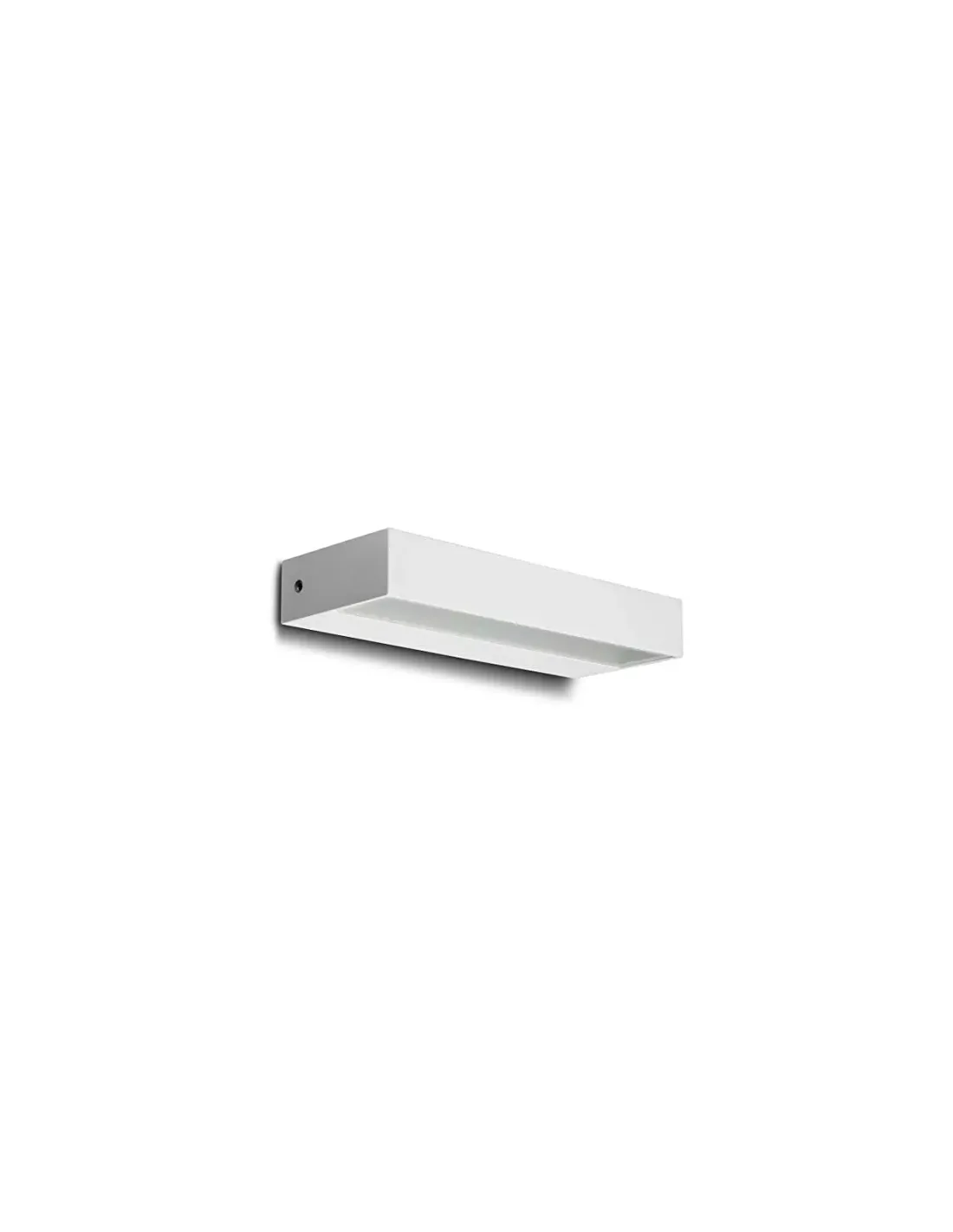

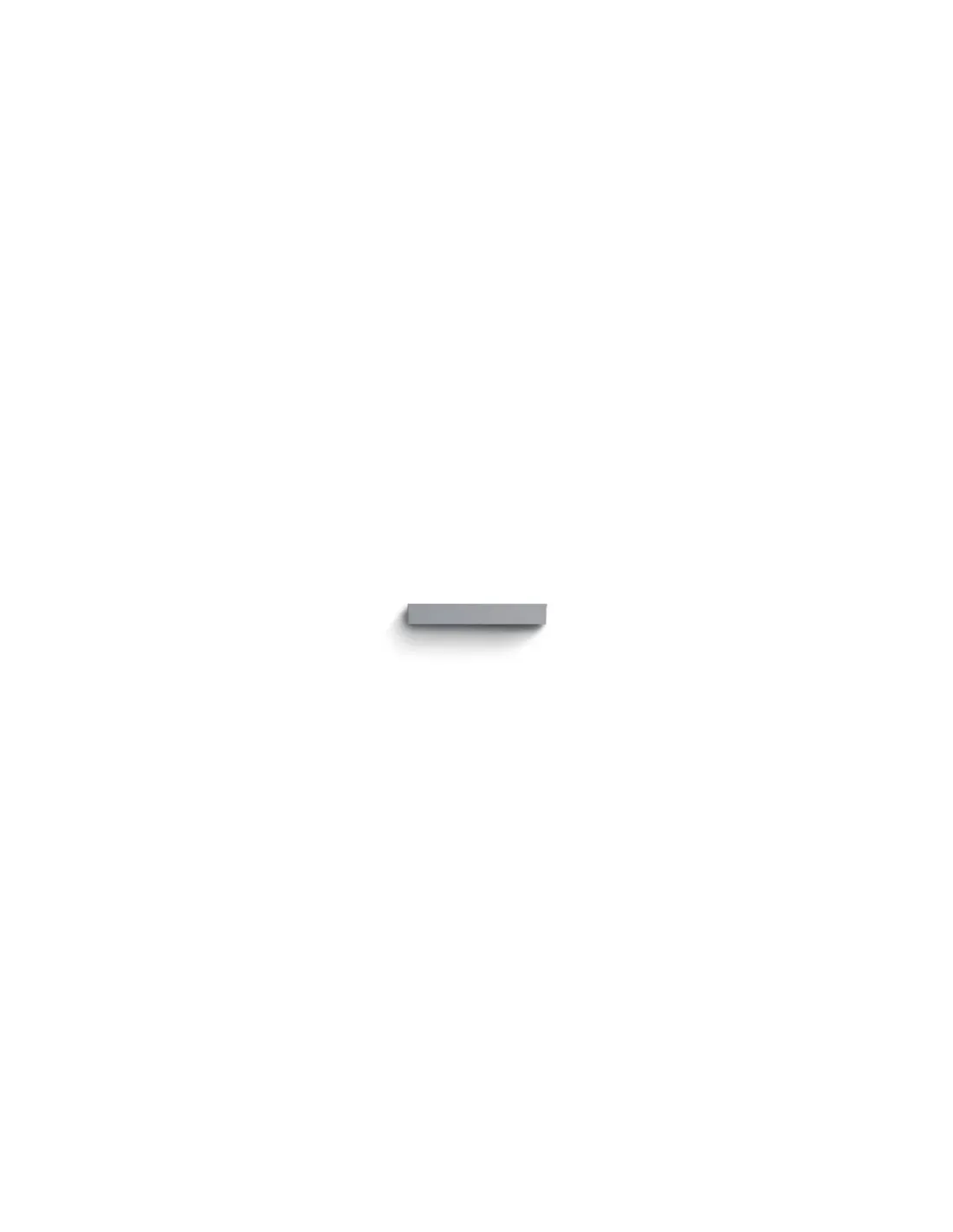

MINI-LOOK APPLIQUE SINGLE ISSUE L 220mm
Art. S.7201W
3000K LED MODULE
Technical Data Light Source
Light source type: LEDs
Color temperature: 3000K
Source luminous flux: 1319lm
Luminaire luminous flux: 691lm
Source power: 6.6W
Total power absorbed by the appliance: 8.6W
Luminaire luminous efficiency: 80lm/W
ULR: 0%
CIE Flux Code: 58 86 97 100 100
Color rendering index: CRI 90
Color match standard deviation: MacAdam step 3
Technical data Power supply
Voltage (AC): 220-240Vac
Frequency (AC): 50/60Hz
Voltage (DC): 176-264Vdc
Dimming: NOT DIMMABLE (ON-OFF)
Inrush Current: 27A 250µsec
Max number of pieces for B16A type thermal magnetic switch: 27
Max number of pieces for C16A type thermal magnetic switch: 45
Overvoltage protection (between L-N): 1÷2kV
Overvoltage protection (between L/N-PE): 2kV
Technical Data Temperatures and Duration
LED lifespan: L80 B10 70.000h Ta 25°C L80 B10 50.000h Ta 40°C
DEVICE lifespan: min. 70,000h Ta 25°C min. 50,000h Ta 40°C
Performance ambient temperature: Tq 25°C
Operating ambient temperature: from -20°C to +50°C
Storage temperature: from -20°C to +60°C
Technical Data Installation
Electrical insulation class: II
IP protection rating: IP65
Impact resistance: IK06
Weight: 0.9694Kg
Power cord: 1m - H05RN-F

PRODUCT DESCRIPTION
TYPE
Wall mounted fixture. IP 65 protection rating

CHARACTERISTICS OF THE MATERIALS
EN AB-47100 die-cast aluminum body with high resistance to oxidation. Structure for bollard in EN AW-6060 extruded aluminum with high resistance to oxidation. Tumbling process to prepare for the production phase painting. A4 stainless steel screws with a high molybdenum content of 2.5-3%. Annealed silicone gaskets.
Extra-resistant double painting carried out in 3 phases:
1) BONDERITE treatment with chemical protection of metal-free fluozirconic material containing ceramic nanoparticles that create a cohesive, inorganic, high density layer. 2) PRE-POLYMERISATION cycle with application of the epoxy primer with characteristics of overpainting on the device and high resistance to oxidation thanks to the presence of zinc. 3) POLYMERIZATION cycle with the application of polyester powder with high characteristics of resistance to UV rays and atmospheric agents, with resistance to the salt spray test of 1200h. Mechanical resistance IK 06

LIGHTING PERFORMANCE
Diffuser in tempered and speckled glass. Light source, with fixed lamp position. Yield --. Color rendering CRI 90, Color stability step 3.

WIRING
Luminaire already wired with a single H05RN-F cable, 1 meter long for MINI-COOL and MINI-LOOK L 220mm. Single entry for power cables with grommet for COOL and LOOK L 290mm.
Insulation class: CLASS II
Available colors: White (cod.01), Aluminum gray (cod.14), Burnished bronze (cod.20), Anthracite gray (cod.24) Weight: 0.9694 Kg Glow Wire test: --
Luminaires supplied complete with LED module

LOOK and COOL REGISTERED MODEL

This device is equipped with integrated LED modules. In case of damage or malfunction, contact the manufacturer to receive additional instructions on how to replace the LED module and related components. The LED module of this device cannot be handled by the end user (EU Regulation 874/2012).

This product contains a light source of energy efficiency class (EPREL - European Product Registry for Energy Labeling): C.

LED module designed in accordance with the current regulation of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where the light quality is reliable for the life of 70,000 hours traceable to L80 B10 Ta 25°C (50,000 hours traceable to L80 B10 Ta 40°C). Appliance lifespan min. 70,000 hours Ta 25°C, min. 50,000 hours Ta 40°C. Performance ambient temperature Tq 25°C. Operating ambient temperature from -20°C to +50°C. Storage temperature from -20°C to +60°C.

ELECTRONIC EQUIPMENT SENSITIVE TO OVERVOLTAGE.
It is recommended to install "SPD" surge protection devices in the electrical system. Protective devices prevent the intensity of these phenomena, protecting the devices from the risk of being damaged and prolonging their life. Outdoor lighting fixtures are subject to all types of permanent, temporary or transient electrical disturbances. Such disturbances can create permanent damage or failures that compromise performance and life. The surge protection device (supplied by SIMES) is used to limit the destructive effect of these phenomena. For each lighting fixture, a protection device must be provided at a distance of no more than 10m. For correct coordination of protections, a protection device against overvoltages must also be provided inside the electrical power panel of the system (the choice of the latter is the responsibility of the designer and is not provided by SIMES).
