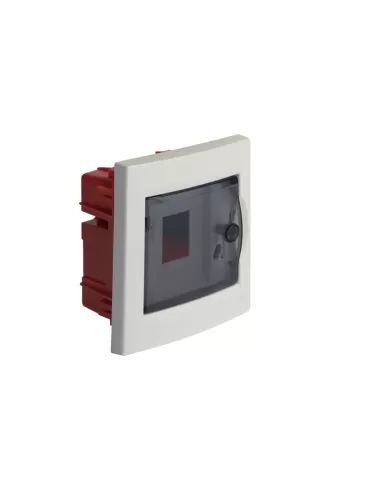

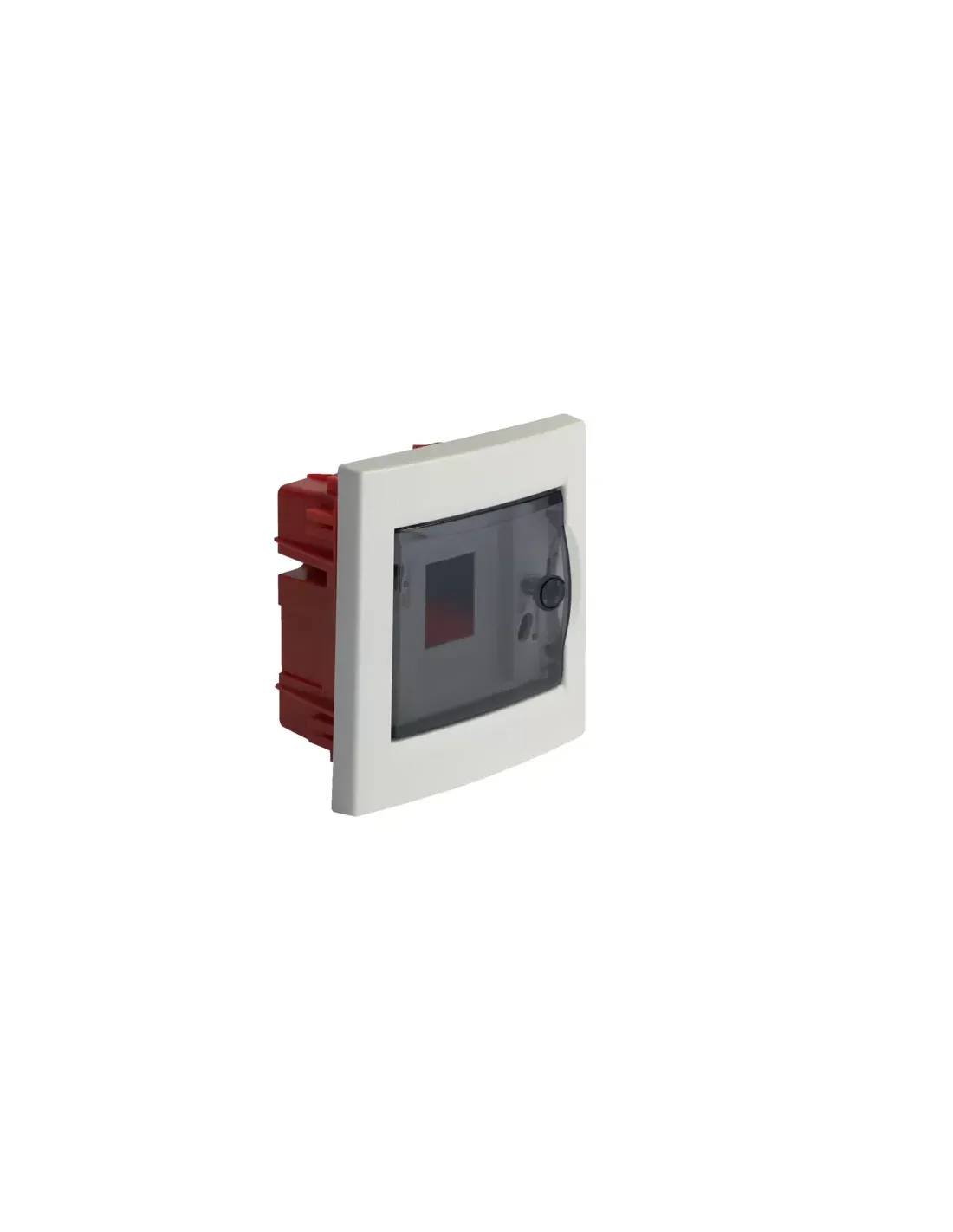

Bocchiotti b04100 IP40 flush-mounted switchboard with 4 switchboard modules

IP40 INC 04 W0 4-module switchboard with smoked door Pablo IP40 Built-in WHITE Design Fixing method built-in Compatibility Compatible with mounting on DIN Rail yes Current Rated current in A 125 A Cover Door closing type without locking Cover type Blind door Lock without Cover type Door Transparent cover or door yes Materials Colour RAL9016 Colour white RAL colour White RAL 9016 Material plastic Dimensions Built-in depth 74 mm Depth of installed product 99 mm Internal depth 99 mm Height of installed product 180 mm Width of installed product 169 mm Width in division units 4 Accessories included Mounting plate included no With lock no Equipment Number of lines in the casing 1 Number of buttons 1 Standards, Approvals Reference standards EN 60670-24 European WEEE Directive not affected Safety Impact resistance level 09 Degree of protection of the casing IP40 Protection class insulation class II Degree of resistance Glow wire according to EN 60695-2-11: 960°C Halogen-free yes Ultraviolet-resistant yes Operating conditions Operating temperature -25…60 °C
