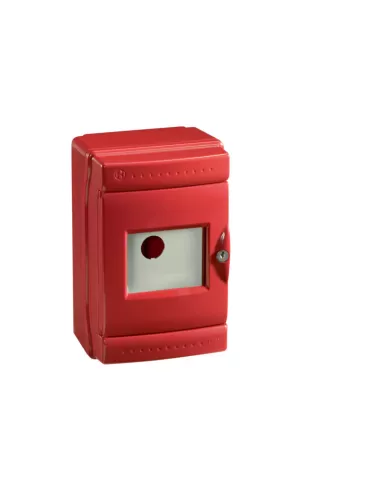

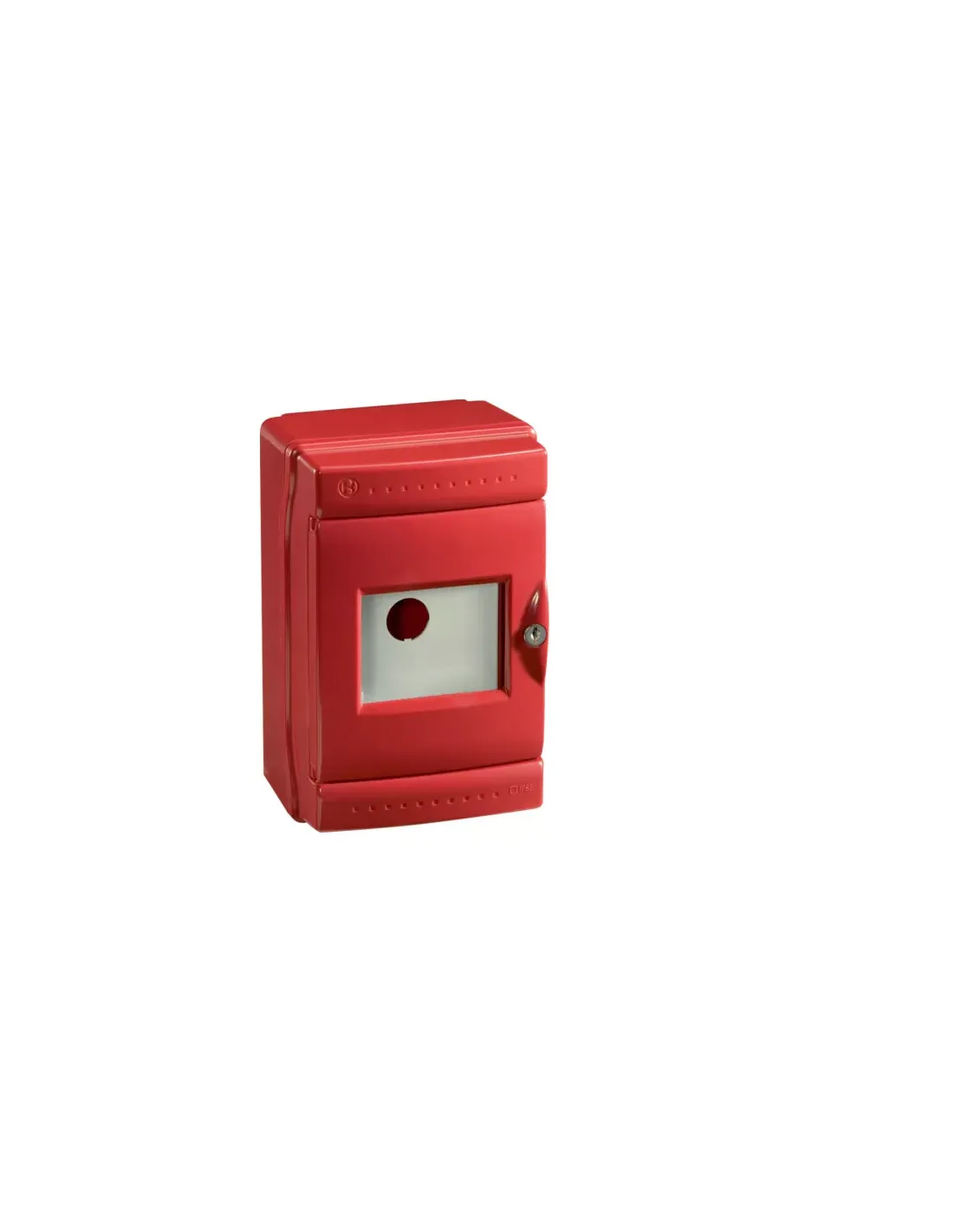

Bocchiotti b05763 emergency wall switchboard ip65 4 modules hole d 22 b05763 accessories

IP65 CE 04 D22 R 4-module watertight switchboard with Ø 22 hole RED Design Protruding fixing method Compatibility Suitable for lightning protection no Current Nominal current in A 16 A Cover Cover material thickness 8 mm Cover type With Notch Door leave single Cover type Lid Transparent cover or door no Materials Color red Color RAL Red RAL 3000 Material plastic Surface treatment Other Dimensions Recess depth 80 mm Depth of installed product 103 mm Internal depth 103 mm Height of installed product 128 mm Installed product width 195 mm Width in division units 1 Material thickness of the side walls 8 mm Installation, mounting Suitable for outdoor use no Accessories included Mounting plate included no With lock yes Equipment Quantity of rows in the housing 1 Removable no Standards, Approvals Reference standards EN 60670-24 European Directive WEEE not affected Safety Impact resistance rating IK07 Enclosure protection rating IP55 Insulation protection class class II Fire resistance -
