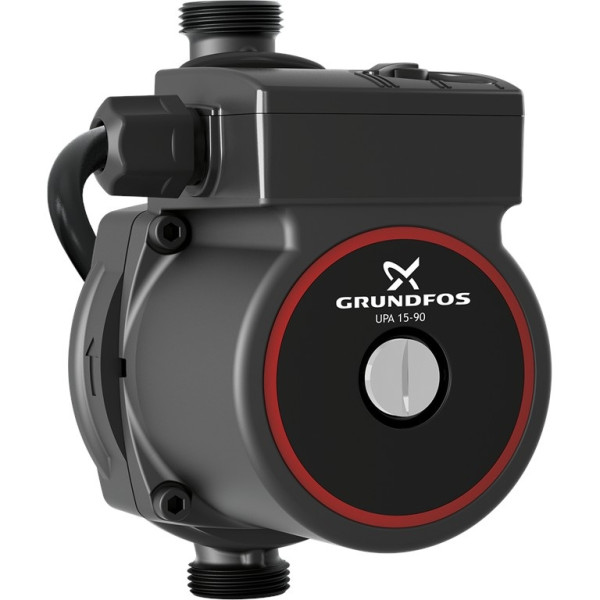

Grundfos 99538895 Circolatore acqua UPA 15-90 160 3/4" 230V 50HZ

UPA 15-90
Grundfos UPA 15-90 is a domestic booster designed for pressure boosting of drinking water supplied from an external source in residential homes. The UPA booster pumps increase the pressure of domestic water to make the required pressure available at showers, taps and other tapping points.

This pump has an inlet and outlet port of 3/4 inch. The pressure rating of the pump corresponds with PN 10 and a port-to-port length of 160 mm. The UPA 15-90 provides the comfort of constant water pressure with automatic start and stop. This is controlled by the integrated flow switch ensuring optimal start/stop of the booster pump according to demand. The design is robust and built upon corrosion-free materials and cataphoresis-coated cast iron pump housing to ensure a long lifetime. The pump is a canned rotor pump type where pump and motor form an integral unit without shaft seal. This pump must always be installed with horizontal motor shaft. This booster has a 2-pole, asynchronous, squirrel-cage motor with built in impedance protection and short circuit proof. The bearings are lubricated by the pumped liquid. These constructional features ensure maintenance-free operation. The pump has the following approvals ,MORO.


Integrated flow switch: Automatic start and stop according to demand
Low noise level
Easy installation: plug and pump compact inline booster
Integrated non-return valve
Improved corrosion resistance
Built in motor protection

Controlli:
Flussostato Sì / No: Y

Liquido:
Liquido pompato: Acqua
Gamma temperatura del liquido: 2 .. 95 °C
Temperatura del liquido durante il funzionamento: 60 °C
Densità: 983.2 kg/m³

Tecniche:
Portata nominale: 0.98 m³/h
Prevalenza: 5.462 m
Classe TF: 95
Approvazioni: ,MORO

Materiale:
Corpo pompa: Ghisa
EN 1561 EN-GJL-150
Girante: Composite
PP-GF30

Installazione:
Limite temperatura ambiente: 0 .. 40 °C
Max pressione di funzionamento: 10 bar
Attaccato tubo standard: ISO 228-1
Tipo di collegamento: G
Dimens. attacco: 3/4 inch
Pressione nominale della connessione: PN 10
Interasse: 160 mm

Dati elettrici:
Potenza max assorbita: 120 W
Frequenza di rete: 50 Hz
Tensione nominale: 1 x 230 V
Consumo massimo di corrente: 0.48 A
Capacità condensatore - marcia: 2.5 µF
Classe di protezione (IEC 34-5): X2D
Classe di isolamento (IEC 85): H
Protezione Ex standard: NONE
Spina di alimentazione: Schuko plug

Altro:
Peso netto: 2.66 kg
Peso lordo: 3.77 kg
Volume imballo: 0.0042 m³
Nazione di origine: CN
Tariffa convenzione n.: 84137030
