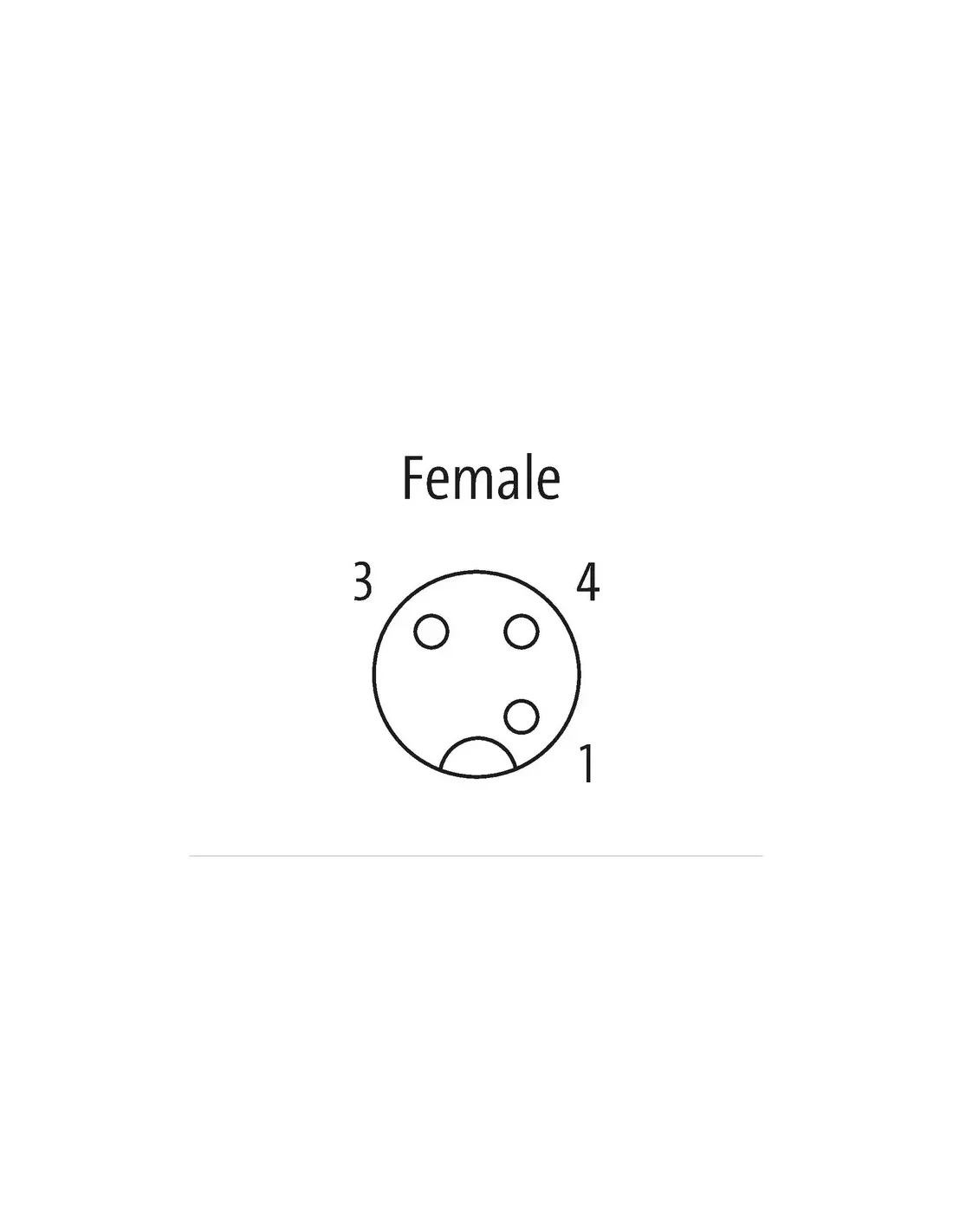

Murr elektronik 7000123812130500 m12 female angled with cable

TECHNICAL DATA Operating voltage 24 V DC ±25% Operating voltage (UL listed only) 30 V DC Rated peak voltage 0 8 kV Operating current per contact max 4 A Material group IEC 60664-1, category I Coding A-code LED indicator (yellow//green) Connector locking Thread (M12×1 mm) tightening torque 0 6 Nm) self-locking M12 cable gland (SW13) Protection degree IP65, IP66K, IP67 with connector inserted and locked (EN 60529) Material PUR Locking device material Die-cast zinc, matt nickel-plated Suitable for sheath (internal Ø) 10 mm GENERAL DATA Standards DIN EN 61076-2-101 (M12) Type of fastening inserted, locked Material (terminals) Copper alloy Material (surface contact) Au Material (seal) FKM Pollution degree 3 Stripping length (jacket) 20 mm Temperature range -25 85 °C, depending on cable quality CABLES No.//wire diameter 3× 0 34 mm² Wire insulation PVC (ma, bl, ne) External Ø 4 6 mm ±5% Cable identification 213 Cable type 1 (PVC) Certifications (cable) UL (AWM-Style 2464//1731), CSA Cable weight [G//m] 34.1 g Material (wire) Copper wire, bare Resistance (conductor) max 60 O//km (20 °C) Ø solid wire (conductor) 0 15 mm Structure (conductor) 19× 0 15 mm (multi-wire cable) class 5) Diameter (conductor) 3× 0 34 mm² AWG similar to AWG 22 Material (wire insulation) PVC Material properties (wire insulation) Free of CFC, cadmium, silicone and lead Shore hardness (wire insulation) 45 ±5 D Ø cable incl insulation 1 25 mm ±5% Colour//number of cables ma, ne, bl Wire combination 3 twisted cables Shielding no Material (jacket) PVC Material properties (jacket) Free of CFC, cadmium, silicone and lead Hardness (jacket) 85 ±5 A External Ø (jacket) 4 6 mm ±5% Color (jacket) gray Color gray Cable printing - Chemical resistance good resistance to oils, petrol and chemicals Rated voltage UL 300 V AC Test voltage 2000 V AC Current load in accordance with DIN VDE 0298-4 Temperature range (fixed) -30 80 °C Temperature range (fixed) -30 80 °C Temperature range (mobile) -5 80 °C Temperature range (mobile) -5 80 °C bending radius (fixed) 5× Ø external Bend radius (movable) 10× Ø external Bend radius (movable) 10× Ø external Material (covering) PVC (UL//CSA)
