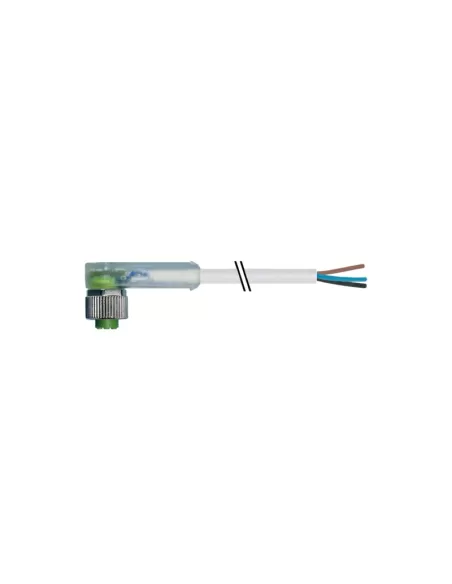

Murr elektronik 7000123812130500 m12 female angled with cable

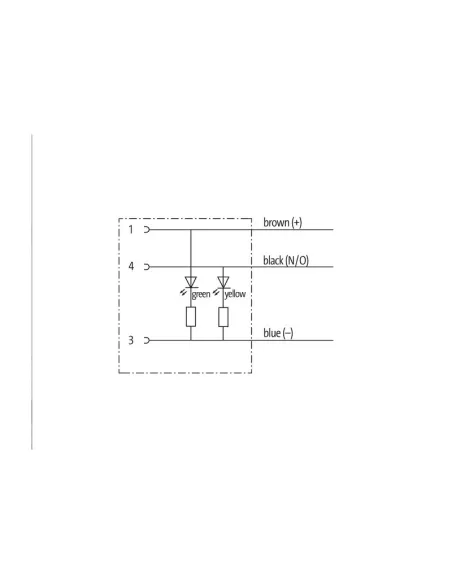

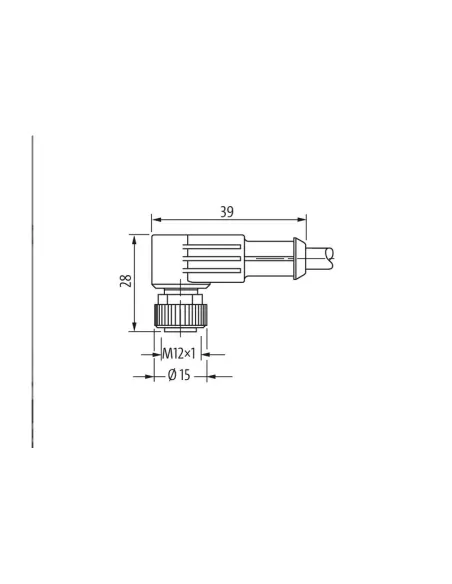

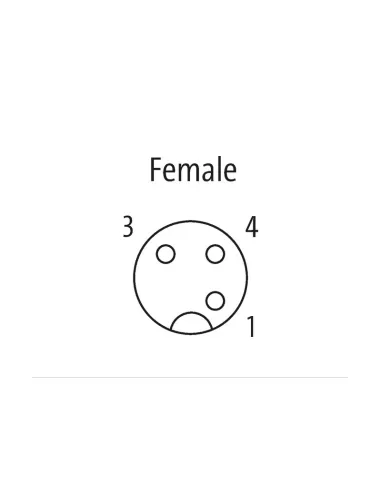

TECHNICAL DATA Operating voltage 24 V DC ±25% Operating voltage (UL listed only) 30 V DC Rated surge voltage 0 8 kV Operating current per contact max. 4 A Material group IEC 60664-1, category I Coding A-coded Indicator LED (yellow/green) Connector locking Thread (M12×1 mm) Tightening torque 0 6 Nm) Self-locking Cable gland M12 (SW13) Degree of protection IP65, IP66K, IP67 when plugged in and locked (EN 60529) Material PUR Locking device material Zinc die-cast, matt nickel-plated Suitable for sheath (internal Ø) 10 mm GENERAL DATA Standards DIN EN 61076-2-101 (M12) Type of fixing inserted, locked Material (terminals) Copper alloy Material (contact surface) Au Material (seal) FKM Pollution degree 3 Stripping length (sheath) 20 mm Temperature range -25 85 °C, depending on cable quality CABLES No.//Wire diameter 3× 0 34 mm² Wire insulation PVC (ma, bl, ne) Outer Ø 4 6 mm ±5% Cable identification 213 Cable type 1 (PVC) Certifications (cable) UL (AWM-Style 2464//1731), CSA Cable weight [G//m] 34.1 g Material (wire) Copper wire, bare Resistance (conductor) max. 60 O//km (20 °C) Wire Ø solid (conductor) 0 15 mm Structure (conductor) 19× 0 15 mm (multi-strand strand class 5) Diameter (conductor) 3× 0 34 mm² AWG similar to AWG 22 Material (wire insulation) PVC Material properties (wire insulation) Free of CFCs, cadmium, silicone and lead Shore hardness (wire insulation) 45 ±5 D Wire Ø incl. insulation 1 25 mm ±5% Color//Number of wires ma, ne, bl Wire combination 3 stranded wires Shielding no Material (jacket) PVC Material properties (jacket) Free of CFCs, cadmium, silicone and lead Hardness (jacket) 85 ±5 A Outer Ø (jacket) 4 6 mm ±5% Color (jacket) grey Color grey Cable printing - Chemical resistance good resistance to oils, petrol and chemicals Rated voltage UL 300 V AC Test voltage 2000 V AC Current carrying capacity according to DIN VDE 0298-4 Temperature range (fixed) -30 80 °C Temperature range (fixed) -30 80 °C Temperature range (mobile) -5 80 °C Temperature range (mobile) -5 80 °C Bending radius (fixed) 5× outer Ø Bending radius (mobile) 10× outer Ø Bending radius (mobile) 10× outer Ø Material (jacket) PVC (UL//CSA)
