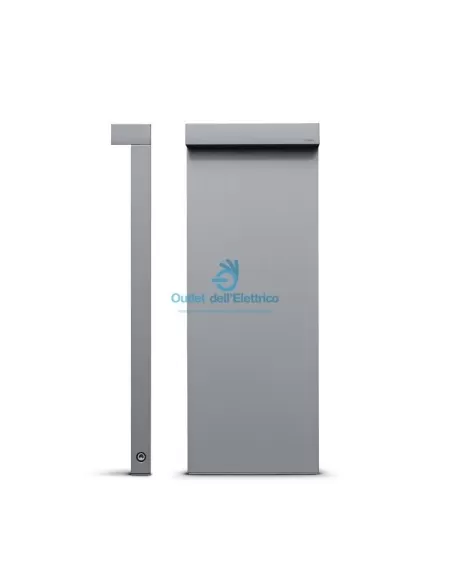

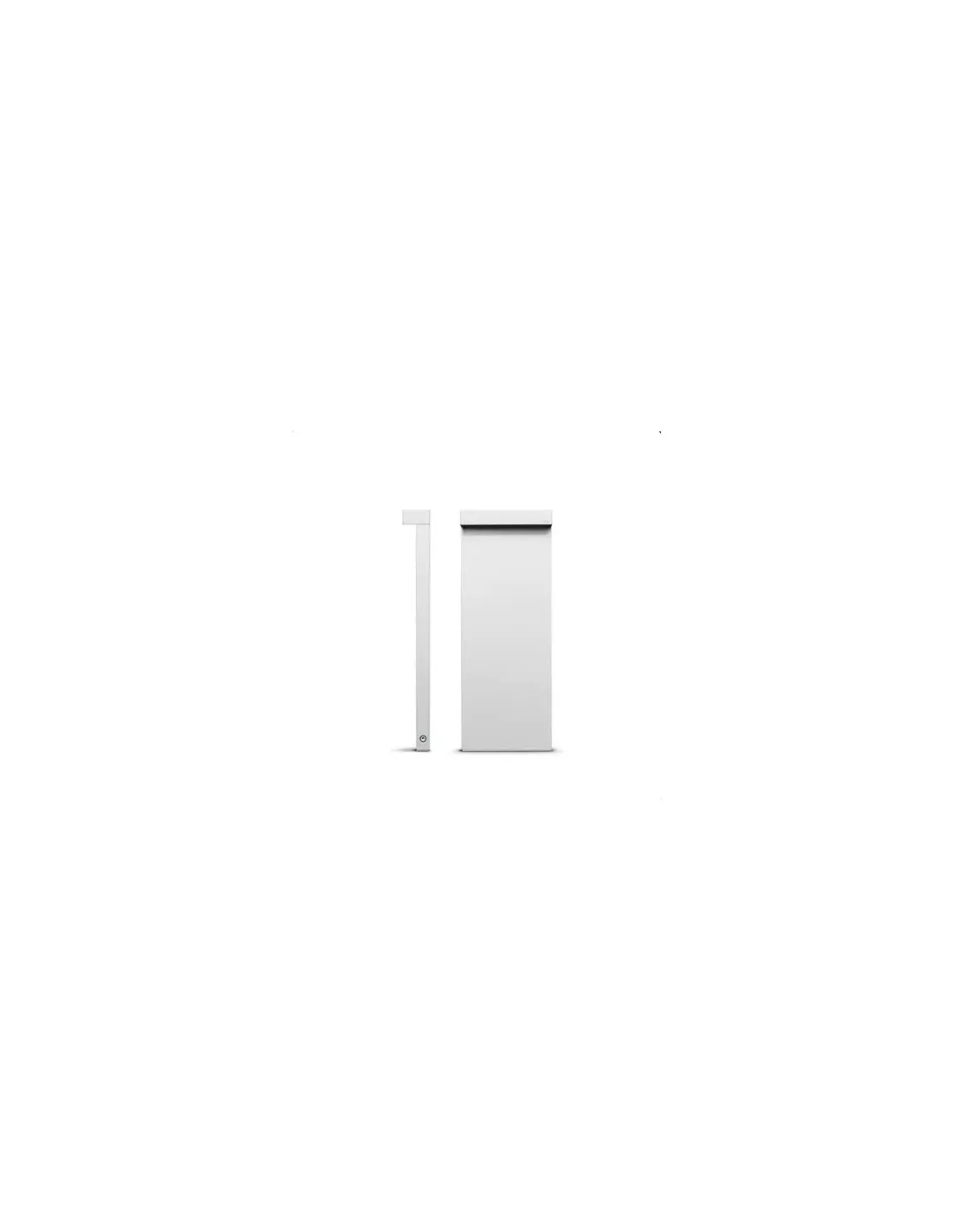

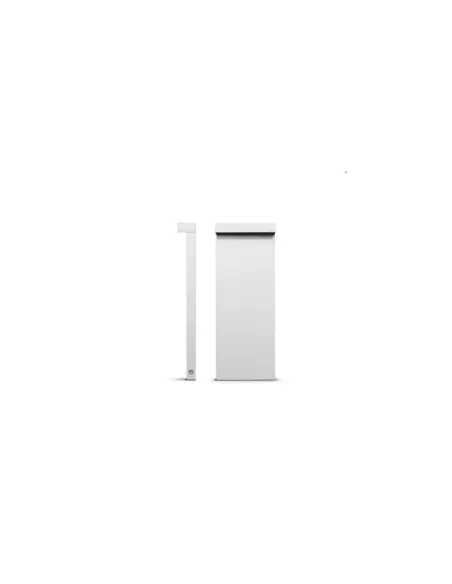

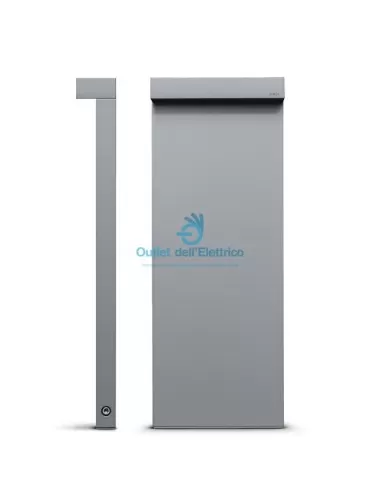

MINI-LOOK SINGLE EMISSION BOLLARDOT H. 580mm
Art. S.7211W
LED MODULE 3000K
Technical Data Light Source
Light source type: LED
Color temperature: 3000K
Source luminous flux: 1319lm
Luminous flux of the luminaire: 601lm
Source power: 6.6W
Total power absorbed by the appliance: 8.7W
Luminaire luminous efficiency: 69lm/W
ULR: 0%
CIE Flux Code: 58 86 97 100 100
Color rendering index: CRI 90
Standard deviation of color match: MacAdam step 3
Technical Data Power Supply
Voltage (AC): 220-240Vac
Frequency (AC): 50/60Hz
Voltage (DC): 176-264Vdc
Dimming: NOT DIMMABLE (ON-OFF)
Inrush Current: 27A 250µsec
Maximum number of pieces for B16A type thermal magnetic switch: 27
Maximum number of pieces for C16A type thermal magnetic switch: 45
Overvoltage protection (between L-N): 1÷2kV
Overvoltage protection (between L/N-PE): 2kV
Technical Data Temperatures and Duration
LED lifespan: L80 B10 70.000h Ta 25°C L80 B10 50.000h Ta 40°C
APPLIANCE lifespan: min. 70,000h Ta 25°C min. 50,000h Ta 40°C
Ambient temperature performance: Tq 25°C
Operating ambient temperature: from -20°C to +50°C
Storage temperature: from -20°C to +60°C
Technical Data Installation
Electrical insulation class: II
IP protection rating: IP65
Impact resistance: IK06
Weight: 4.9589Kg
Power cord: 1m - H05RN-F
PRODUCT DESCRIPTION
TYPE
Ground-mounted bollard. IP 65 protection rating.

MATERIAL CHARACTERISTICS
Body in die-cast EN AB-47100 aluminum with high resistance to oxidation. Bollard structure in extruded EN AW-6060 aluminum with high resistance to oxidation. Tumbled finish for preparation for the painting phase.A4 stainless steel screws with a high 2.5-3% molybdenum content. Annealed silicone gaskets.
Extra-resistant double painting carried out in 3 phases:
1) BONDERITE treatment with a metal-free fluozirconic chemical protection material containing ceramic nanoparticles that create a cohesive, inorganic, high-density layer. 2) PRE-POLYMERIZATION cycle with application of an epoxy primer with characteristics that allow the device to be overpainted and with high resistance to oxidation thanks to the presence of zinc. 3) POLYMERIZATION cycle with the application of polyester powder with high resistance to UV rays and atmospheric agents, with resistance to the salt spray test for 1200 hours. Mechanical resistance IK 06

LIGHTING PERFORMANCE
Tempered and dotted glass diffuser. Light source, with fixed lamp position. Efficiency --. Color rendering index CRI 90, Color stability step 3.

INSTALLATION AND MAINTENANCE
Outdoor products must be used with plastic stake accessories or a flange for concrete. They cannot be installed directly on the ground or directly on concrete plinths without accessories because contact between the two materials can cause undesirable accelerated oxidation of the fixture. Product wiring must strictly comply with specifications. Loop-in/loop-out wiring, where not provided for by the fixture, creates moisture infiltration that, when in contact with the electrical wires, can accelerate the oxidation process.

WIRING
Fixture already wired with single H05RN-F cable with IP68 quick connector for MINI-COOL and MINI-LOOK L 220mm, single entry for power cables with cable gland for COOL and LOOK L 290mm.
Insulation class: CLASS II
Available colors: White (code 01), Aluminum gray (code 14), Burnished bronze (code 20), Anthracite gray (code 24) Weight: 4.9589 Kg Glow Wire test: --
Fixtures supplied complete with LED module

LOOK and COOL REGISTERED MODEL

This device features integrated LED modules. In case of damage or malfunction, contact the manufacturer for additional instructions on how to replace the LED module and related components. The LED module in this device cannot be handled by the end user (EU Regulation 874/2012).

This product contains a light source of energy efficiency class (EPREL - European Product Registry for Energy Labelling): C.

LED module designed in accordance with the current Lumen Maintenance Regulation (LM80) and Technical Memorandum (TM21), where the light quality is reliable for a lifetime of 70,000 hours referred to L80 B10 Ta 25°C (50,000 hours referred to L80 B10 Ta 40°C). Luminaire lifespan min. 70,000 hours Ta 25°C, min. 50,000 hours Ta 40°C. Performance ambient temperature Tq 25°C. Operating ambient temperature -20°C to +50°C. Storage temperature -20°C to +60°C.

ELECTRONIC EQUIPMENT SENSITIVE TO OVERVOLTAGE.
It is recommended to install surge protection devices (SPD) in the electrical system.Protective devices prevent the intensity of these phenomena, protecting fixtures from damage and prolonging their life. Outdoor lighting fixtures are subject to all types of permanent, temporary, or transient electrical disturbances. These disturbances can cause permanent damage or failures that compromise their performance and lifespan. Surge protection devices (supplied by SIMES) are used to limit the destructive effect of these phenomena. A protective device must be installed for each lighting fixture no more than 10 meters away. To ensure proper coordination of the protection devices, a surge protection device must also be included within the system's electrical power panel (the choice of this device is the responsibility of the designer and is not supplied by SIMES).
